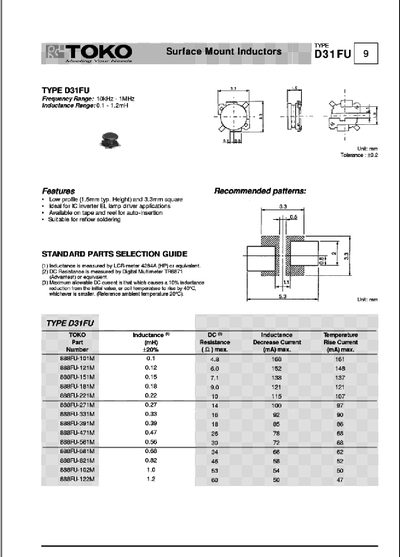

TOKO D31FU Series Inductor Datasheet

Brand: TOKO
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 30 KB
Published: 05 June, 2012
Updated: 05 June, 2012
Model: D31FU
MD5 checksum: 4B114A687E9E1A772F77C2401704FCEC
PDF: TOKO D31FU Series Inductor Datasheet PDF

About this manual

This document is a datasheet for the TOKO D31FU series of inductors. The components feature a low profile with a typical height of 1.5mm and a square footprint, making them ideal for use in WG inverter EL lamp drivers. They are available on tape and reel for auto-insertion and are suitable for reflow soldering processes.

What's inside

Features
Standard Parts Selection Guide
Inductance Range
Frequency Range
Tolerance
Resistance Measurement
Current Ratings

Specifications

Frequency Range	OKHz - I MHz
Inductance Range	0.1 - 1.2mH
Height	1.5mm typ.
Footprint Shape	3.3mm square

Frequently asked questions

What is the frequency range for the TOKO D31FU inductor?

The device operates within a frequency range of 0 kHz to 1 MHz.

What is the typical height of the TOKO D31FU inductor?

The inductor has a low profile with a typical height of 1.5mm.

For what specific application is this inductor ideal?

It is ideal for use in WG inverter EL lamp driver applications.
