The TK711xx is a low dropout linear regulator with features such as low dropout voltage, low quiescent current, short circuit protection, and thermal overload protection. It is suitable for battery powered systems, portable consumer equipment, cordless telephones, personal communications equipment, radio control systems, toys, and low voltage systems.

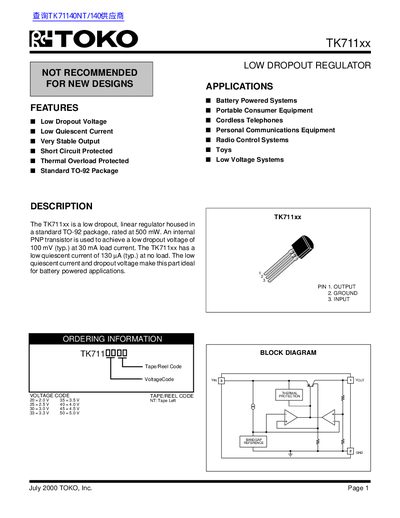

The document describes the TK711xx, a low dropout linear regulator housed in a standard TO-92 package. It is rated at 500 mW power dissipation and utilizes an internal PNP transistor to achieve a typical dropout voltage of 100 mV at 30 mA load current.
| Power Dissipation | 500 mW |
|---|---|
| Dropout Voltage (Typ) | 100 mV |
| Quiescent Current (Typ) | 130 uA |
| Package Type | TO-92 |
No, it is not recommended for new designs.
It is ideal for battery powered systems and portable consumer equipment.
