The LLQ1608 series is a wirewound ceramic chip inductor that conforms to the EIA standard 0603 footprint and delivers superb Q and SRF performance with high inductance tolerance.

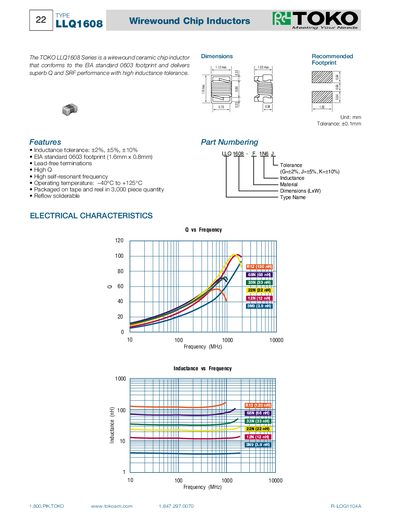

This document is a technical datasheet for the TOKO LLQ1608 series of wirewound chip inductors. The components feature an EIA standard 0603 footprint (1.6mm x 0.8mm) and are designed with lead-free terminations suitable for reflow soldering.
The datasheet provides a selection guide listing various part numbers, inductance values ranging from 1.6 nH to 270 nH, along with their specific electrical characteristics such as minimum Q factor, maximum DC resistance (RDC), and self-resonant frequency (SRF).
| Footprint | EIA standard 0603 (1.6mm x 0.8mm) |
|---|---|
| Termination Type | Lead-free |
| Operating Temperature Range | -40°C to +125°C |
| Packaging Quantity | 3,000 pieces per reel |
The standard tolerances are ±2%, ±5%, and ±10%.
Yes, they are designed to be reflow solderable.
