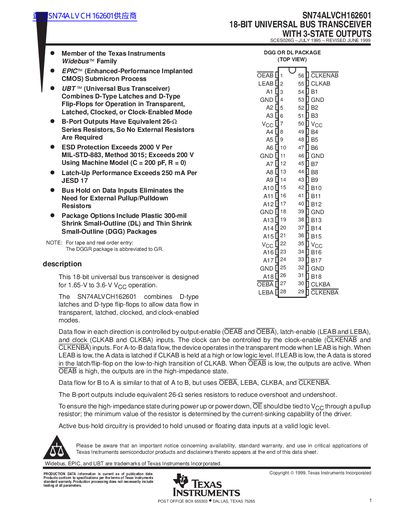

The SN74ALVCH162601 is a 18-bit universal bus transceiver that combines D-type latches and D-type flip-flops to allow data flow in transparent, latched, clocked, and clock-enabled modes.
The SN74ALVCH162601 universal bus transceiver supports transparent, latched, clocked and clock‑enabled data flow in both directions. Output‑enable, latch‑enable and clock inputs control data transfer, while built‑in bus‑hold circuitry eliminates the need for external pull‑up/pull‑down resistors.
The datasheet lists absolute maximum ratings, recommended operating conditions, electrical characteristics, timing and switching parameters, as well as package options and thermal information. It also includes an important notice on product warranties and critical‑application usage.
| Supply voltage range | 1.65 V – 3.6 V |
|---|---|
| Operating temperature range | –40 °C – 85 °C |
It is specified for operation from –40 °C to 85 °C.
The device operates with a supply voltage between 1.65 V and 3.6 V.
