This data sheet mainly introduces SN74C130A datasheet, including product features, performance parameters, package and other information.

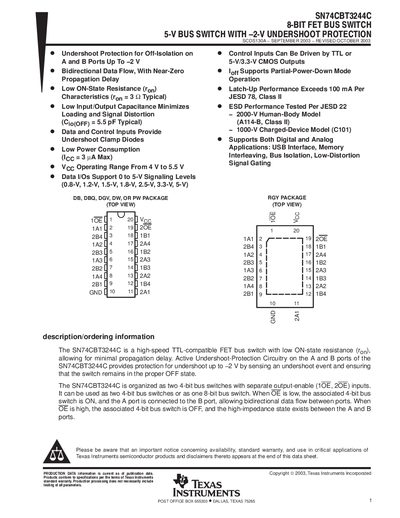

The SN74CBT3244C is an 8‑bit FET bus switch that can be configured as two 4‑bit switches or a single 8‑bit switch. It provides bidirectional data flow, low ON‑state resistance, and active undershoot‑protection circuitry that limits undershoot to –2 V.
The device operates from 4 V to 5.5 V, supports multiple package types (QFN‑RGY, SSOP‑DBQ, SOIC‑DW, TSSOP‑PW, etc.), and offers low input/output capacitance and ESD protection. Detailed electrical characteristics, absolute maximum ratings, and recommended operating conditions are provided in the datasheet.
| Operating temperature range | -40 °C to 85 °C |
|---|
The device provides active undershoot protection up to –2 V on the A and B ports.
