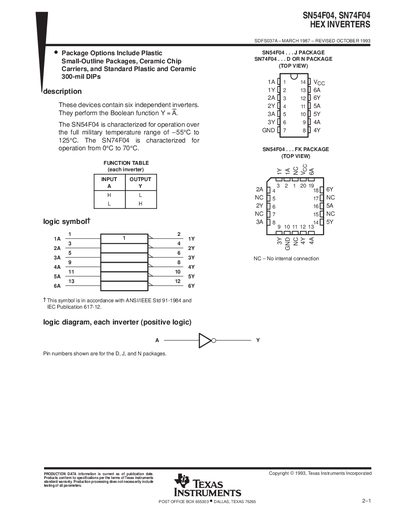

SN54F04, SN74F04 HEX INVERTERS is a logic chip produced by Texas Instruments. It contains 6 independent inverters and has a working temperature range of -55 to 125℃.
The SN54F04 and SN74F04 are six‑channel hex inverters that perform the Boolean function Y = !A. The SN54F04 is rated for a military temperature range of –55 °C to 125 °C, while the SN74F04 operates from 0 °C to 70 °C. Various package options are offered, including plastic small‑outline packages, ceramic chip carriers, and standard 300‑mil DIP.
The datasheet lists absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics such as supply voltage (0.5 V to 7 V), input voltage range (‑0.5 V to 7 V), VIH (2 V), VIL (0.8 V), and output current limits. An addendum provides packaging part numbers, moisture‑sensitivity levels, and RoHS compliance details.
Each inverter performs the Boolean function Y = !A.
The SN54F04 operates from –55 °C to 125 °C, and the SN74F04 operates from 0 °C to 70 °C.
Package options include plastic small‑outline packages, ceramic chip carriers, and standard plastic and ceramic 300‑mil DIPs.
