This document describes the features and characteristics of products such as CNX82A.W, CNX83A.W, SL5582.W, and SL5583.W, including input/output pin distance and UL recognition.

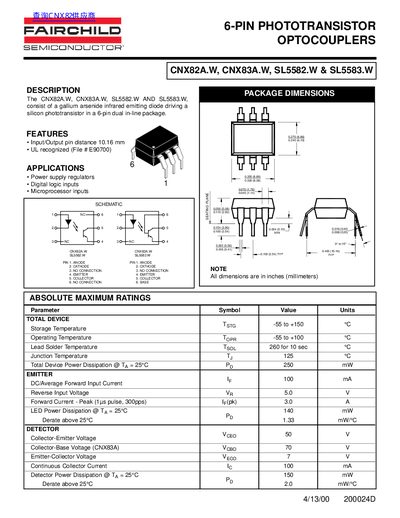

The Fairchild CNX82A.W, CNX83A.W, SL5582.W and SL5583.W are 6‑pin dual‑in‑line optocouplers that combine a gallium‑arsenide infrared LED with a silicon phototransistor. The document provides a description, pinout, package dimensions, absolute maximum ratings, and detailed electrical characteristics.
Key sections include electrical characteristics (forward voltage, leakage current, breakdown voltages), transfer and isolation characteristics, typical performance graphs, ordering information, and legal disclaimer regarding life‑support applications.
| Collector‑Emitter Voltage | 50 V |
|---|---|
| Continuous Collector Current | 100 mA |
| Operating Temperature Range | -55 °C to +100 °C |
The device is rated for a maximum collector‑emitter voltage of 50 V.
The device can operate from –55 °C to +100 °C.
The optocoupler comes in a 6‑pin dual‑in‑line package.
