The 217 Series fast-acting fuse is available in ratings from 0.032 to 15 amperes and meets the IEC 60127-2 standard. RoHS and lead-free versions are available.

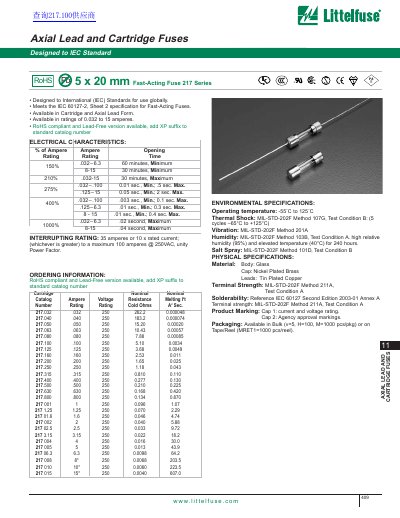

This datasheet describes the Littelfuse 217 Series axial lead and cartridge fuses designed to IEC 60127‑2 standards. It lists electrical characteristics, interrupting ratings, environmental limits, and physical construction details.
The document also includes ordering information, packaging options, and agency approvals, with notes on RoHS‑compliant versions and lead‑free options.
| Current rating range | 0.032–15 A |
|---|---|
| Interrupting rating | 35 A or 10× rated current up to 100 A @ 250 VAC |
| Operating temperature | -55 °C to 125 °C |
| Lead material | Tin‑plated copper |
| Body material | Glass |
| RoHS compliance | Yes (add XP suffix for lead‑free version) |
The fuses operate from –55 °C up to 125 °C.
Add the suffix “XP” to the standard catalog number for the RoHS‑compliant, lead‑free part.
