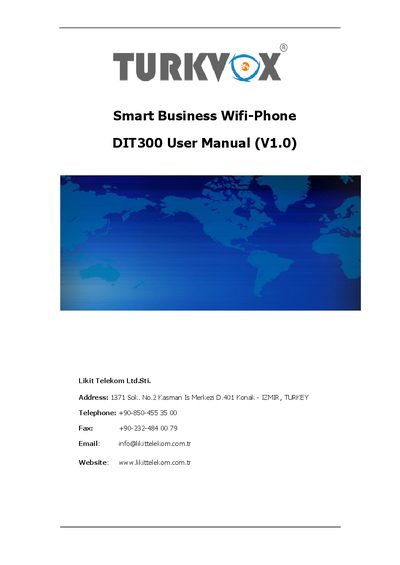

This manual explains how to use the DIT300 Wifi-phone. It provides information on how to install and configure the phone. The manual also provides information on how to use basic phone functions, such as making calls and answering calls.
This manual introduces the Smart DIT300 Wifi‑Phone, a 4‑line VoIP phone that supports Power over Ethernet, two Ethernet ports, and 802.11n wireless. It explains the hardware layout, front and rear panels, LEDs, and LCD functions.
Installation steps cover assembling the handset, mounting the unit, powering the device, and connecting to the network either via wired Ethernet or Wi‑Fi. Subsequent sections describe basic and advanced phone functions, web‑based configuration, administration tools, and troubleshooting procedures.
| Power over Ethernet (PoE) | Supported |
|---|---|
| Ethernet ports | Two |
| Wireless antenna | 3dB internal antenna for 802.11n 1T1R |
| Packet cycle | 20 ms |
| Silence suppression | Disabled |
| Echo cancellation | Enabled |
| Firmware version | 2011.12.1 |
Plug the AC power adapter into an electrical outlet; the LCD will display a welcome message and then initialize the network.
The phone can be connected via a wired Ethernet cable to the Internet port or by configuring Wi‑Fi through the LCD menu or the web interface.
Verify that the power adapter is properly connected and, if using PoE, that the PoE switch is correctly configured.
Select the Factory Default option from the Menu (option 16) to restore the phone to its original settings, which clears the password.
