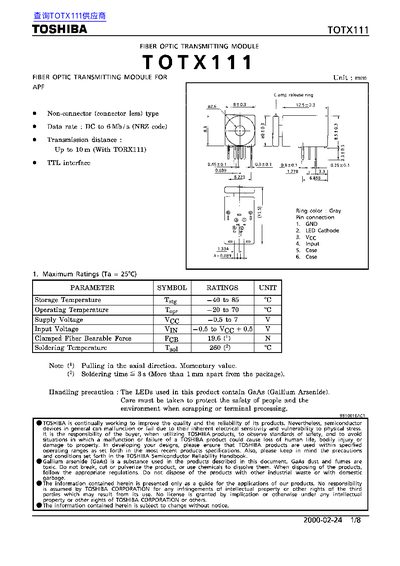

The TOTX111 is a fiber‑optic transmitting module designed for use with a matching TORX111 receiver. It operates with a TTL interface, supports data rates up to 6 Mb/s (NRZ code), and can transmit optical signals up to 10 m when paired with TORX111. The module is non‑connector (connector‑less) and includes a clamp release ring for fiber handling.
Recommended operating conditions include a supply voltage of 5 V ± 0.25 V (max 7 V), input voltage limits of –0.5 V to VCC + 0.5 V, and storage temperatures from –40 °C to 85 °C. The document also provides handling precautions, soldering guidelines (≤260 °C for ≤3 s), and vibration/shock resistance information.
| Data Rate | 6 Mb/s (NRZ code) |
|---|---|
| Transmission Distance | Up to 10 m with TORX111 |
| Supply Voltage (Voc) | 4.75 V – 5.25 V |
| Input Voltage (VIN) | –0.5 V to VCC + 0.5 V |
| Storage Temperature | –40 °C to 85 °C |
| Operating Temperature | –20 °C to 70 °C |
| Fiber Output Power | -12 dBm to -5 dBm (1 m) |
| Peak Emission Wavelength | 670 nm |
| Current Consumption | 40 mA – 50 mA |
| Fiber Clamping Force | 19.6 N – 35 N |
Use a supply voltage of 5 V ± 0.25 V and do not exceed the maximum rating of 7 V.
It can transmit up to 10 m when used together with a TORX111 receiver.
The module can be stored from –40 °C to 85 °C.
Solder at 260 °C or less for no more than three seconds and avoid flux contacting the emitting surfaces.
