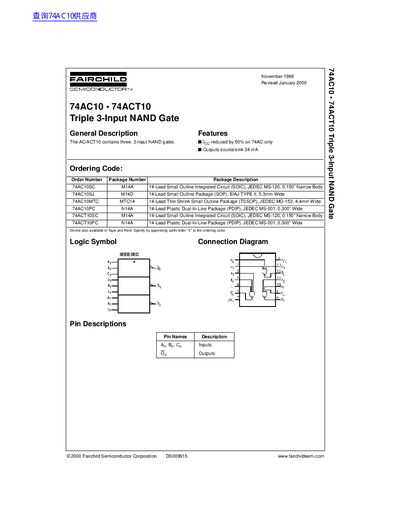

The document describes the features and characteristics of the 74AC10 and 74ACT10 triple 3-input NAND gates produced by Fairchild Semiconductor Corporation, including a 50% reduction in ICC on 74AC, outputs sourcing/sinking 24 mA, etc.
The 74AC10 and 74ACT10 are triple 3‑input NAND gate devices offering reduced input capacitance and high output drive capability. Features include 24 mA source/sink current and a wide supply voltage range.
The document lists ordering codes for multiple packages (SOIC, SOP, TSSOP, PDIP), electrical characteristics such as absolute maximum ratings, propagation delays, and input capacitance, as well as detailed mechanical dimensions and land‑pattern recommendations. A life‑support policy disclaimer is also included.
| Output source/sink current | 24 mA |
|---|---|
| Supply voltage range (VCC) | -0.5 V to +7.0 V |
| Input capacitance (C_in) | 45 pF |
| Typical propagation delay (TPHL) | 1.0 ns (typ) |
The device can operate with a supply voltage from –0.5 V up to +7.0 V.
Each output can source or sink up to 24 mA.
No, they are not authorized for use in life‑support devices without written approval from Fairchild Semiconductor.
