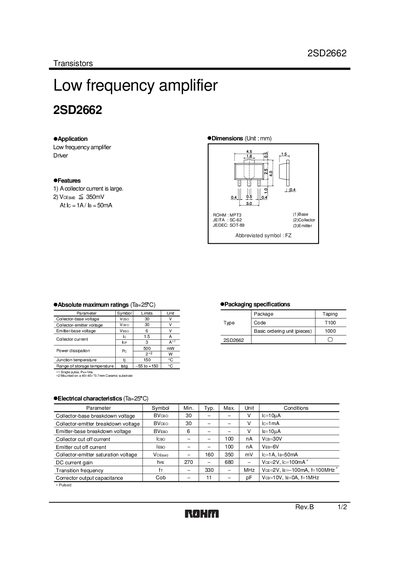

This document describes the features and characteristics of the 2SD2662 transistor, including its application as a low frequency amplifier and driver, large collector current, and low saturation voltage.
The 2SD2662 is a low‑frequency amplifier transistor offered by ROHM. It is designed for applications such as low‑frequency amplifiers and driver circuits, featuring a large collector current and a low emitter‑base voltage drop.
The document lists absolute maximum ratings, dimensions, packaging specifications, and detailed electrical characteristics, including voltage limits, current ratings, power dissipation, and temperature ranges. It also includes characteristic curves and legal notes regarding usage and distribution.
| Collector‑base voltage (Vceo) | 30 V |
|---|---|
| Collector‑emitter voltage (Vceo) | 20 V |
| Collector current (Ic) | 18 A |
| Power dissipation (Pd) | 500 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 to +150 °C |
| Basic ordering unit | 1000 pieces |
The maximum collector‑emitter voltage is 20 V.
It can dissipate up to 500 mW.
The basic ordering unit is 1000 pieces.
The device can be stored from –55 °C to +150 °C.
