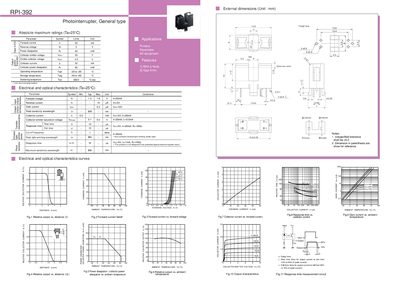

RPI-392 Photointerrupter, General type, Applications Printers, Facsimiles, AV equipment. Product features: 1) With a hook. 2) Gap 4mm.
The RPI-392 photointerrupter provides a non‑coherent infrared light source and a 4 mm sensing gap. It is rated for a forward current of 50 mA, reverse voltage of 5 V, collector‑emitter voltage up to 30 V and power dissipation of 80 mW.
Typical applications include printers, facsimiles and AV equipment. The device is intended for use with ordinary electronic equipment; for safety‑critical systems such as medical or aerospace devices, consult the sales representative before use.
| Forward current (Ir) | 50 mA |
|---|---|
| Reverse voltage (VR) | 5 V |
| Collector‑emitter voltage (VCEO) | 30 V |
| Power dissipation (Po) | 80 mW |
| Operating temperature | -25 °C to +85 °C |
| Gap | 4 mm |
| Peak sensitivity wavelength | 800 nm |
| Rise time (tr) | 10 µs |
| Fall time (tt) | 10 µs |
| Cut‑off frequency | 1 MHz |
The device is rated for a forward current of 50 mA.
It can operate from –25 °C up to +85 °C.
The reverse voltage rating is 5 V.
The photointerrupter has a 4 mm gap.
