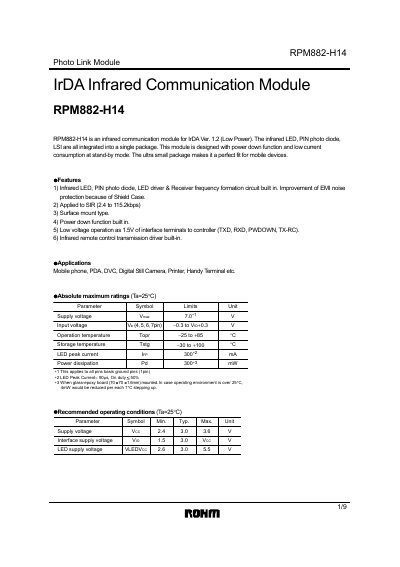

RPM882-H14 is an infrared communication module for IrDA Ver. 1.2 (Low Power). The infrared LED, PIN photo diode, LSI are all integrated into a single package. This module is designed with power down function and low current consumption at stand-by mode. The ultra small package makes it a perfect fit for mobile devices.
The RPM882-H14 is an infrared communication module compliant with IrDA Ver.1.2 (Low Power). It integrates an infrared LED, PIN photo‑diode, driver and receiver circuitry in a compact surface‑mount package, making it suitable for mobile devices such as phones, PDAs and digital cameras.
The document lists absolute maximum ratings, recommended operating conditions, pin assignments, electrical and optical parameters, and recommended external components. It also gives layout tips and safety notes for reliable implementation in electronic equipment.
| Supply voltage (VCC) max | 7.0 V |
|---|---|
| LED peak current (IrDA mode) | ≈40 mA |
| Data rate | 2.4 kbps to 115.2 kbps |
The module can be powered up to 7.0 V on VCC, while the interface supply (VIO) is typically 3.0 V.
