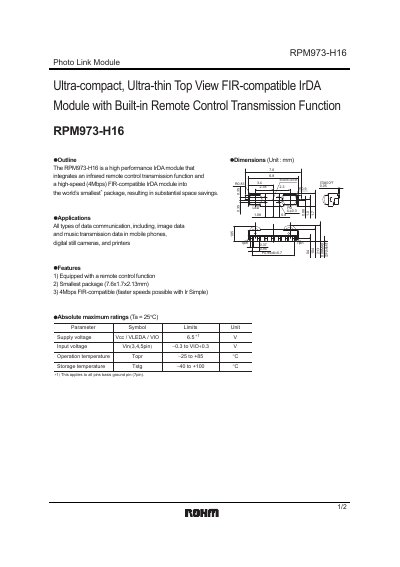

RPM973-H16 is a high-performance IrDA module that integrates an infrared remote control transmission function and a high-speed (4Mbps) FIR-compatible IrDA module into the world's smallest package, resulting in substantial space savings. It can be used for all types of data communication, including image data and music transmission data in mobile phones, digital still cameras, and printers.
The RPM973-H16 is a high‑performance IrDA module that integrates a remote‑control transmission function and a 4 Mbps FIR‑compatible infrared link in an ultra‑thin package (7.6 × 1.7 × 2.13 mm). It offers the smallest footprint among comparable modules and is designed for space‑constrained applications.
Typical applications include data communication for mobile phones, digital still cameras, printers, and other devices that require image or music transmission. The datasheet provides electrical and optical characteristics, recommended operating conditions, and absolute maximum ratings for designers.
| Supply voltage (Vec/VLED/VIO) max | 6.5 V |
|---|---|
| Input voltage range | -0.3 V to VIO+0.3 V |
| Operation temperature | -25 °C to +85 °C |
| Storage temperature | -40 °C to +100 °C |
| LED anode current (typical) | 250 mA |
| Peak wavelength | 880 nm |
| Receiver latency time (typical) | 100 µs |
The module measures 7.6 mm × 1.7 mm × 2.13 mm.
It supports a 4 Mbps FIR‑compatible IrDA data rate.
The maximum supply voltage for Vec, VLED, and VIO is about 6.5 V.
Typical LED anode current is 250 mA.
