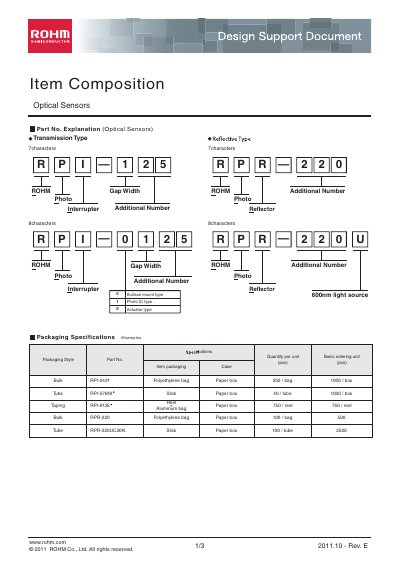

This document is a catalog of ROHM optical sensors. It contains the models, specifications, packaging methods, etc. of ROHM optical sensors.
This design support document covers ROHM's optical sensor family, including infrared LEDs, phototransistors, and photodiodes. It lists part numbers, transmission and reflective type codes, packaging styles (bulk, tube, reel) and ordering quantities, as well as basic device characteristics such as surface‑mount type and light source wavelength.
The handbook also includes usage notes and legal notices, stating that the products are intended for general electronic equipment and are not radiation‑tolerant or suitable for safety‑critical applications such as medical instruments or aerospace machinery. For detailed specifications or inquiries, users are directed to contact ROHM via their website.
| Transmission Type code length | 7 characters |
|---|---|
| Interrupter code length | 8 characters |
| Reflective Type code length | 7 characters |
| Reflector code length | 8 characters |
| Bulk packaging quantity per bag | 250 units |
| Tube packaging quantity per tube | 40 units |
| Reel packaging quantity per reel | 750 units |
| Surface‑mount type light source wavelength | 600 nm |
Bulk items are packed in polyethylene bags with 250 units per bag and 1000 units per box.
No, the products specified in this document are not designed to be radiation tolerant.
