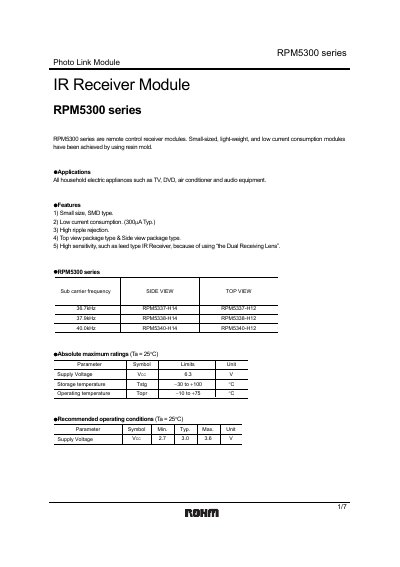

RPM5300 series are remote control receiver modules. Small-sized, light-weight, and low current consumption modules have been achieved by using resin mold.
The RPM5300 series IR receiver modules are compact, low‑power devices intended for household electronics such as TVs, DVD players, air conditioners and audio equipment. The RPM5340‑H14 variant supports three carrier frequencies and features a small SMD package for easy integration.
The datasheet lists absolute maximum ratings, recommended operating conditions, pin functions, electrical and optical performance curves, and mechanical dimensions. It also includes important notes on indoor‑only use, grounding, and environmental considerations.
| Supply Voltage (VCC) typical | 3.0 V (range 2.7‑3.6 V) |
|---|---|
| Current consumption (typical) | 300 µA |
| Package type | Small size, SMD |
The typical supply voltage is 3.0 V, with an allowed range from 2.7 V to 3.6 V.
The receiver typically consumes 300 µA of current.
No, the receiver is designed for indoor use only.
