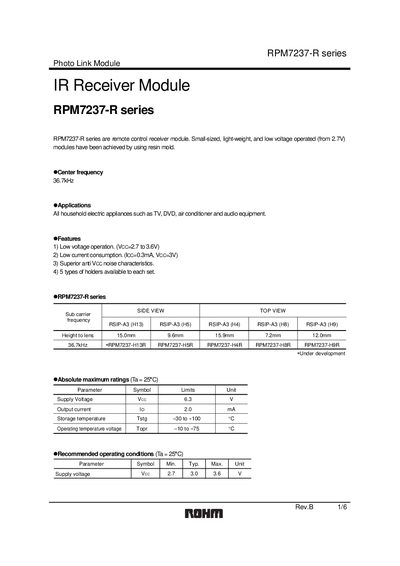

The RPM7237-R series is a remote control receiver module. Small-sized, light-weight, and low voltage operated (from 2.7V) modules have been achieved by using resin mold.
The RPM7237-H4R is a small‑sized, low‑voltage infrared receiver module intended for household electric appliances such as TVs, DVD players, air conditioners and audio equipment. It operates at a center frequency of 36.7 kHz and offers low current consumption (0.3 mA) with superior anti‑Vcc noise characteristics.
The document lists absolute maximum ratings, recommended operating conditions, terminal pin functions, optical and electrical characteristics, dimensions, and a series of usage notes covering installation, signal format, and environmental considerations.
| Supply voltage (Vcc) range | 2.7 V to 3.6 V |
|---|---|
| Typical supply voltage | 3.0 V |
| Current consumption (Icc) | 0.3 mA |
| Output current (lo) | 2.0 mA (max) |
| Center frequency | 36.7 kHz |
| Storage temperature range | -30 °C to +100 °C |
| Operating temperature range | -10 °C to +75 °C |
| Number of holder types | 5 |
The module operates from 2.7 V to 3.6 V.
The receiver’s center frequency is 36.7 kHz.
Five different holder types are offered.
The maximum output current is 2.0 mA.
