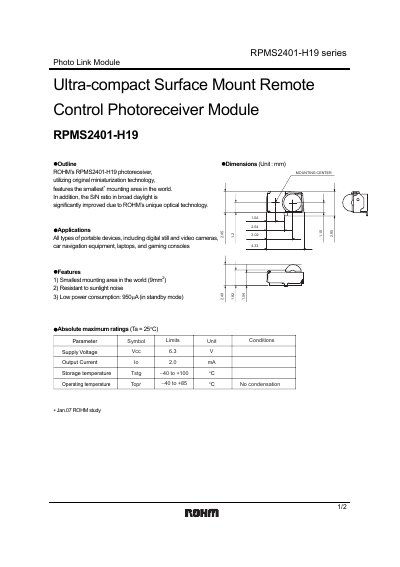

The RPMS2401-H19 series of ultra-compact surface mount remote control photoreceiver modules from ROHM uses original miniaturization technology to achieve the world's smallest* mounting area. In addition, the S/N ratio in broad daylight is significantly improved due to ROHM's unique optical technology.
The RPMS2401-H19 series Photo Link Module is an ultra‑compact surface‑mount remote‑control photoreceiver. It features the smallest mounting area in the world (9 mm), resistance to sunlight noise, and low power consumption of 950 µA in standby mode.
The module is intended for portable devices such as digital cameras, car navigation equipment, laptops, and gaming consoles. It operates from a 6.3 V supply, with an output current of 2.0 mA, and is rated for -40 °C to +100 °C operating temperature and -40 °C to +85 °C storage temperature.
| Mounting area | 9 mm |
|---|---|
| Standby current consumption | 950 µA |
It consumes 950 µA of current in standby mode.
It is suitable for portable devices such as digital still and video cameras, car navigation equipment, laptops, and gaming consoles.
