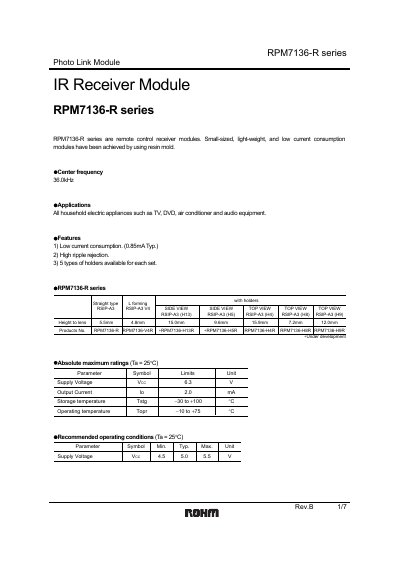

RPM7136-R series are remote control receiver modules. Small-sized, light-weight, and low current consumption modules have been achieved by using resin mold.
The RPM7136-R series is a small, lightweight infrared receiver module designed for remote‑control functions in TVs, DVD players, air conditioners and other home appliances. It operates at a center frequency of 36 kHz, offers low current consumption and high ripple rejection, and is available with five different holder types.
The manual details electrical characteristics such as a 5 V supply (4.5‑5.5 V range) and typical 0.85 mA current draw, pin descriptions, dimensional data, and recommended usage practices including grounding the holder and avoiding strong light or EMI sources. Measurement conditions, optical performance curves, and safety notices are also included.
| Supply Voltage (VCC) | 5.0 V typ. (4.5 V – 5.5 V) |
|---|---|
| Center Frequency | 36.0 kHz |
| Height to Lens | 5.5 mm |
The module is designed for a 5 V supply, with an acceptable range from 4.5 V to 5.5 V.
The receiver operates at a center frequency of 36 kHz.
The holder must be connected to the ground (GND) pin of the PCB to avoid degrading performance.
