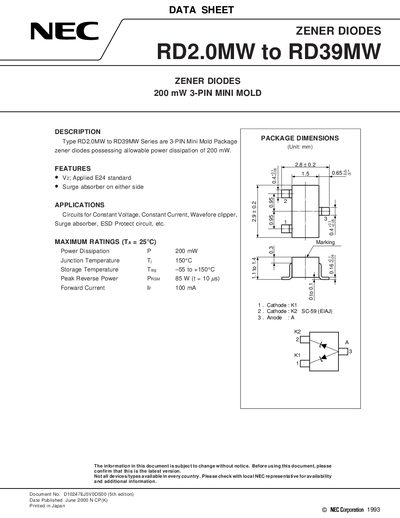

RD2.0MW to RD39MW are 3-PIN Mini Mold Package zener diodes possessing allowable power dissipation of 200 mW. They are suitable for circuits for Constant Voltage, Constant Current, Wavefore clipper, Surge absorber, ESD Protect circuit, etc.
The RD2.0MW to RD39MW series are 3‑pin mini‑mold Zener diodes with a power dissipation of 200 mW. They are intended for constant‑voltage, constant‑current, waveform‑clipping, surge‑absorber and ESD‑protect circuits.
Key specifications include a junction temperature of 150 °C, storage temperature range from –55 °C to +150 °C, peak reverse power of 85 W (10 µs pulse) and forward current of 100 mA. Detailed Zener voltage ranges for each part number are listed in the electrical characteristics tables.
| Power Dissipation | 200 mW |
|---|---|
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Ta) | -55 °C to +150 °C |
| Peak Reverse Power (Pasm) | 85 W (10 µs) |
| Forward Current (If) | 100 mA |
The diodes are rated for a maximum power dissipation of 200 mW.
They can be stored from –55 °C up to +150 °C.
The peak reverse power rating is 85 W for a 10 µs pulse.
