PEELTM 16CV8-25 is a programmable electrically erasable logic device from Anachip Corporation. It is compatible with 16V8 devices, supports 20-pin DIP, SOIC, TSSOP and PLCC packages, and has a speed range of 25ns and power consumption as low as 37mA.

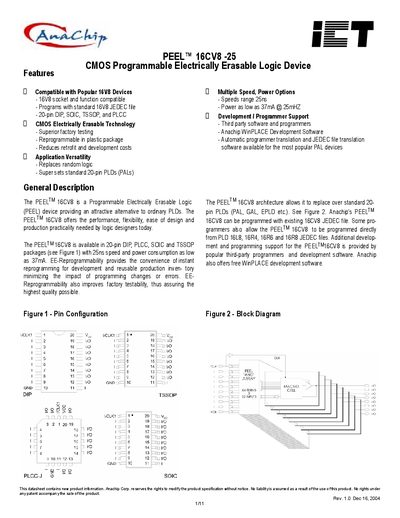

This datasheet describes the PEEL™ 16CV8 programmable electrically erasable logic device. It outlines features such as compatibility with standard 16V8 devices, multiple speed and power options, and support for third‑party development tools. The document includes functional and architectural details, macrocell configurations, and security features.
Technical data such as speed, power consumption, voltage limits, package options and ordering information are presented, along with absolute maximum ratings and electrical characteristics. Contact and address information for Anachip Corp. is also provided.
| Speed | 25 ns |
|---|---|
| Power consumption | 37 mA @ 25 MHz |
| Supply Voltage (VCC) | -0.5 to +6.0 V |
| Output Current per Pin | 25 mA |
| Package Options | 20‑pin DIP, PLCC, SOIC, TSSOP |
The device operates with a speed of 25 ns.
It provides ten dedicated input pins and eight I/O pins, allowing up to 16 inputs and 8 outputs.
The supply voltage can range from –0.5 V to +6.0 V.
The device is offered in 20‑pin DIP, PLCC, SOIC and TSSOP packages.
