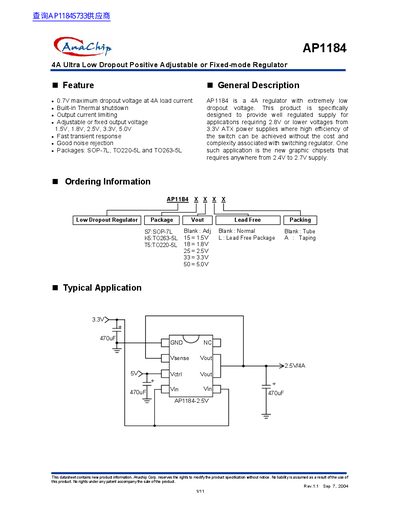

AP1184 is a 4A low dropout voltage regulator with extremely low dropout voltage. It is designed to provide well regulated supply for applications requiring 2.8V or lower voltages from 3.3V ATX power supplies.
The Anachip AP1184 is a 4A regulator designed to provide well-regulated supply for applications requiring voltages from 2.8V or lower, such as new graphic chipsets needing 2.4V to 2.7V supplies. It features an extremely low dropout voltage of 0.7V maximum at 4A load current and includes built-in thermal shutdown protection.
Available in SOP-7L, TO220-5L, and TO263-5L packages, the AP1184 offers adjustable or fixed output voltages (1.5V to 5.0V). The device incorporates a control pin for remote load sensing, allowing accurate voltage setting at the load rather than at the device itself.
| Dropout Voltage (Max) | 0.7V at 4A load current |
|---|---|
| Adjustable Output Range | 1.25V to 15.5V |
| Operating Junction Temperature | 0°C to +150°C |
| Storage Temperature | -65°C to +150°C |
The maximum dropout voltage is 0.7V at a 4A load current.
The device is available in SOP-7L, TO220-5L, and TO263-5L packages.
Yes, it incorporates an internal thermal shutdown that protects the device when the junction temperature exceeds the allowable maximum.
The minimum load current requirement for the AP1184-ADJ is 10mA.
