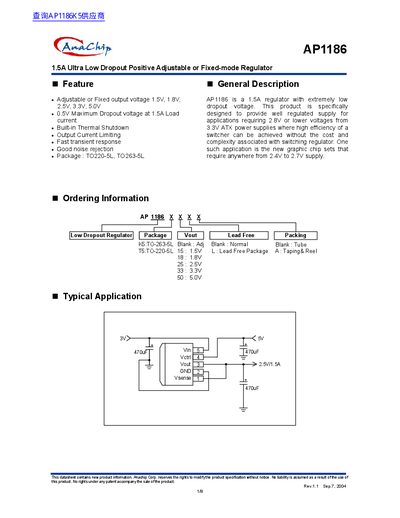

AP1186 is a 1.5A ultra low dropout positive adjustable or fixed-mode regulator with features such as adjustable or fixed output voltage, maximum 0.5V dropout voltage, built-in thermal shutdown, and output current limiting.
The AnaChip AP1186 is a 1.5A regulator designed to provide well-regulated supply for applications requiring voltages of 2.8V or lower from 3.3V ATX power supplies. It features an extremely low dropout voltage, built-in thermal shutdown, and output current limiting. The device is available in TO-263-5L and TO-220-5L packages.
| Output Current | 1.5A |
|---|---|
| Dropout Voltage (Max) | 0.5V |
| Input Voltage (Max) | 16V |
| Operating Junction Temperature Range | 0 to +150 °C |
| Ripple Rejection (Typ) | 70 dB |
The device supports fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V.
The regulator is available in TO-263-5L and TO-220-5L packages.
Yes, it incorporates a built-in thermal shutdown to protect the device when junction temperature exceeds limits.
