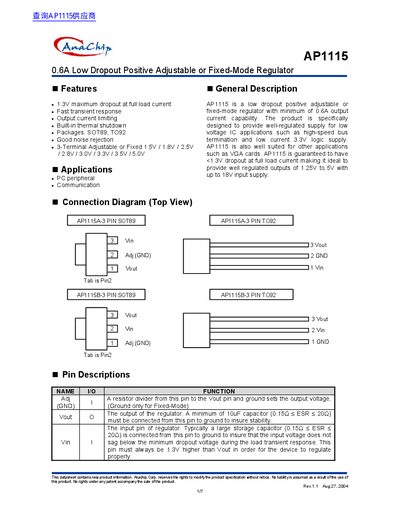

The AP1115 is a low dropout positive adjustable or fixed-mode regulator with a minimum output current capability of 0.6A. It is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. The AP1115 is also well suited for other applications such as VGA cards. It guarantees a dropout of less than 1.3V at full load current, making it ideal for providing well-regulated outputs from 1.25V to 5V with an input supply voltage of up to 18V.
The Anachip AP1115 is a low dropout positive adjustable or fixed-mode regulator with a minimum output current capability of 0.6A. It is specifically designed to provide well-regulated supply for low voltage IC applications, such as high-speed bus termination and low current 3.3V logic supply, making it ideal for VGA cards and PC peripherals. The device guarantees less than 1.3V dropout at full load current, allowing for regulated outputs between 1.25V and 5V with an input supply up to 18V.
| Output Current Capability | 0.6A |
|---|---|
| Maximum Dropout Voltage | <1.3V |
| Input Supply Range | -0.3 to 18 V |
| Operating Junction Temperature | 0 to +150 °C |
| Storage Temperature | -65 to +150 °C |
| Available Packages | SOT89, TO92 |
| Fixed Output Voltages | 1.5V / 1.8V / 2.5V / 3.0V / 3.3V / 3.5V / 5.0V |
The product has a minimum output current capability of 0.6A.
The device guarantees less than 1.3V dropout at full load current.
The AP1115 is available in SOT89 and TO92 packages.
