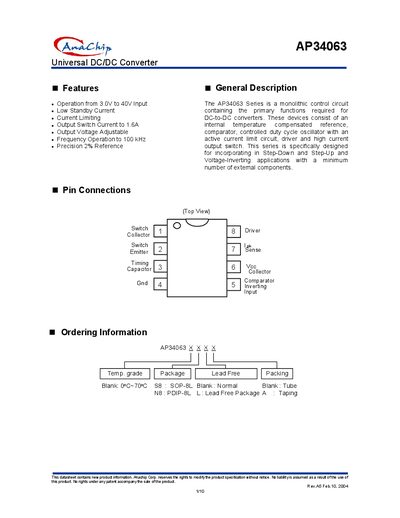

The AP34063 is a DC/DC converter from Anachip Corp. It features an operating voltage range of 3.0V to 40V, adjustable output voltage, output current up to 1.6A, and a frequency of up to 100 kHz.
The AP34063 Series is a universal DC-to-DC converter control circuit containing an internal temperature compensated reference, comparator, controlled duty cycle oscillator with active current limit, driver, and high current output switch. It is specifically designed for incorporating in Step-Down, Step-Up, and Voltage-Inverting applications with a minimum number of external components.
| Input Voltage Range | 3.0V to 40V |
|---|---|
| Output Switch Current | 1.6A |
| Operating Frequency | to 100 kHz |
| Reference Voltage Accuracy | 2% |
| Operating Junction Temperature | +150 °C |
The device supports an output switch current up to 1.6A.
The converter operates from a 3.0V to 40V input supply.
The output voltage is adjustable using an external resistor network.
