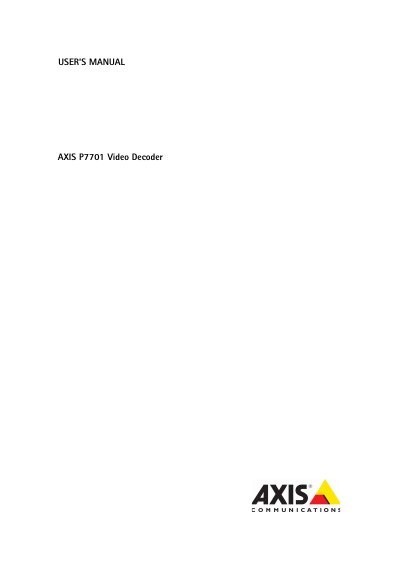

This manual provides instructions for using and managing the AXIS P7701 Video Decoder, and is applicable for firmware release 5.07 and later.
The manual describes the Axis P7701 Video Decoder, a device that decodes H.264, MPEG‑4 and Motion JPEG streams and outputs video via DVI, composite, or HDMI adapters. It outlines key features such as full‑frame‑rate decoding, PoE power, audio decoding, and serial port control.
It covers installation, network access through a web browser, root‑password setup, adding and managing video sources, security settings, and maintenance procedures, and includes a full technical specification table.
| Video compression formats | H.264, MPEG‑4 Part 2, Motion JPEG |
|---|---|
| Maximum resolution (H.264 / MPEG‑4) | Up to D1 (720×480 NTSC, 720×576 PAL) |
| Maximum resolution (Motion JPEG) | Up to 720p (1280×720) |
| Frame rate (H.264 / MPEG‑4) | 30/25 fps (NTSC/PAL) up to D1 |
| Frame rate (Motion JPEG) | Up to 15 fps at 720p |
| Dimensions (HxWxD) | 33 × 99 × 118 mm |
| Weight | 318 g (0.7 lb) |
| Operating temperature | 0 °C to 50 °C |
