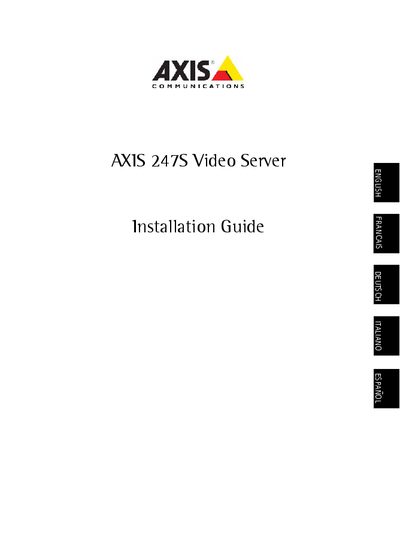

AXIS 247S Installation Guide

About this manual

This installation guide explains how to set up the Axis 2475S video server, including hardware mounting, cable connections, power options, and initial network configuration. It also lists the package contents and provides safety notes.

The guide covers assigning an IP address, setting the root password, and resetting the device to factory defaults. Optional accessories such as PoE midspans and connector kits are described, and troubleshooting tips are included for common issues.

What's inside

• Package contents
• Hardware overview
• Install the hardware
• Connect the cables
• Assign an IP address
• Set the password
• Reset to factory defaults

Specifications

Frequently asked questions

How do I assign an IP address to the Axis 2475S?

Use the AXIS IP Utility or AXIS Camera Management to assign a static IP address, or enable DHCP on the network.

What is the maximum power the server can deliver to a camera?

The server can deliver up to 5 W (420 mA) to a connected camera.
