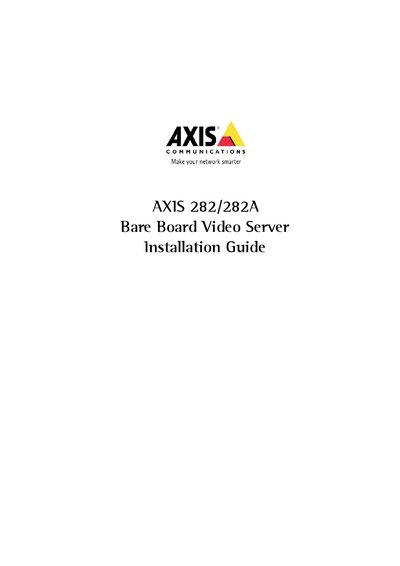

AXIS 282/282A Bare Board Video Server Installation Guide describes how to install AXIS 282/282A Bare Board Video Server.
The Axis 282/282A is a small‑form‑factor, 1‑port bare board video server designed for integration into cameras, PTZ units and other surveillance devices. This guide provides the steps needed to mount the board, connect power, network and I/O, and configure basic operation.
Key sections include mounting instructions with four M2 screws, the 4‑pin terminal I/O connector, the 34‑pin header pinout, network connection details, LED indicator functions, and the control and flash buttons used for factory configuration.
| Form factor | 1‑port bare board video server |
|---|---|
| Power input voltage | 8 – 20 V |
| Serial ports | RS‑232 or RS‑485 |
| Alarm I/O | 1 alarm input, 1 alarm output |
| Audio I/O | Line/Mic In (mono) and Line Out (mono) |
| Network interface | Ethernet 10BaseT/100BaseTX, RJ‑45 |
| Mounting hardware | 4 M2 screws |
It supports bi‑directional full‑duplex, push‑to‑talk half‑duplex, or simplex audio communication.
Network LED (green/red), Status LED (green/red), Flash LED, and Power LED are indicated on the board.
The board operates with a power input of 8 V to 20 V.
