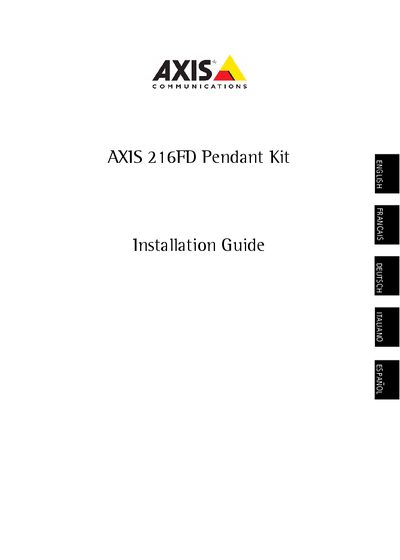

This installation guide provides instructions for installing the Pendant Kit for the AXIS 216FD/216FD-V/216MFD/216MFD-V Fixed Dome Network Camera, in this document referred to as AXIS 216FD.
This guide provides step‑by‑step instructions for installing the Axis 216FD pendant kit on a fixed dome network camera. It starts with a list of required components, then walks through mounting the wall bracket, attaching the pendant adapter, and securing the camera unit.
The document also includes notes on serial‑number recording, gasket placement, and final tightening of tamper‑proof screws, ensuring a complete and secure installation.
| Pendant adapter material | Cast aluminum |
|---|---|
| Pendant adapter gasket | Included |
| 1.5‑inch to 22‑mm adapter | Included (not available in all pendant kits) |
| M4 × 16 Pozidriv screws | 2 pieces |
| M4 × 20 Pozidriv screw | 1 piece |
The kit includes a cast aluminum pendant adapter, a pendant adapter gasket, a 1.5‑inch to 22‑mm adapter (if supplied), two M4 × 16 Pozidriv screws, and one M4 × 20 Pozidriv screw.
