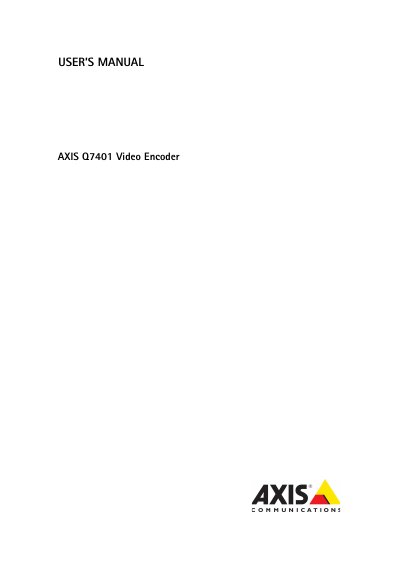

AXIS Q7401 Video Encoder User's Manual, including instructions for using and managing the encoder on your network
The Axis Q7401 Video Encoder is a network video encoder that supports H.264 and Motion JPEG compression, multiple simultaneous streams, Power over Ethernet, two‑way audio, and local SD/SDHC storage. It includes intelligent video features such as motion detection, tampering alarm, and audio detection, and can be integrated with ONVIF‑compatible systems.
The manual covers hardware installation, accessing the encoder via a web browser or the Internet, configuring network settings, setting the root password, and using the Axis Media Control (AMC) for live view, streaming, and recording. Technical specifications, performance considerations, and troubleshooting guidance are also provided.
| Video compression | H.264, Motion JPEG |
|---|---|
| Supported resolutions | 176 × 120 to 720 × 576 |
| Frame rate (H.264) | 30/25 fps (NTSC/PAL) |
| Power options | 8‑20 V DC, max 7.2 W, PoE (IEEE 802.3af) |
| Processor and memory | ARTPEC‑3, 128 MB RAM, 128 MB Flash |
| Dimensions (HxWxD) | 32.1 × 98.9 × 118.0 mm |
| Weight | 335 g (power supply not included) |
Open the ‘Configure Root Password’ dialog when first accessing the encoder, create a self‑signed certificate if using HTTPS, then enter and confirm the new password. The password can also be set via an unencrypted HTTP connection.
