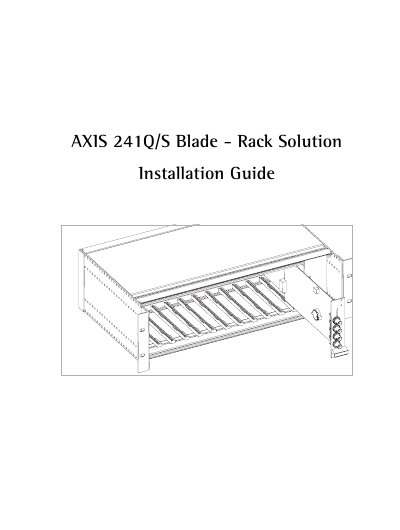

This document is an installation guide that provides instructions for installing the Axis 241Q/S Blade - Rack Solution on a network. The document also covers topics such as intellectual property rights, legal considerations, and electromagnetic compatibility.
This guide provides step‑by‑step instructions for installing the Axis 241Q/S Blade Rack Solution, including hardware inventory, power and network connections, and configuration of the video server blades. It also contains legal, EMC, and safety information required for compliant deployment.
The document details the physical dimensions of the rack and blades, connector types, battery replacement procedure, DIP‑switch settings, and technical specifications such as power input, operating temperature, and approved safety standards.
| Rack Height | 5.2" (13.2 cm) |
|---|---|
| Rack Width | 19.0" (48.2 cm) |
| Rack Length | 11.8" (30.0 cm) |
| Video Server Height | 1.2" (3.1 cm) |
| Power Input | 100‑240 VAC, 50‑60 Hz, 1.6 A |
| Operating Temperature | 40 °F to 125 °F (5 °C to 50 °C) |
| Battery Type | 3.0 V CR2032 Lithium |
| Supported Network Speed | 10 Mbps Ethernet / 100 Mbps Fast Ethernet |
| Maximum Video Sources (241Q Blade) | 4 |
| Safety Approval | EN 55 024:1998 + A1 |
The AXIS 241Q Blade can accommodate up to four separate video sources simultaneously.
They are designed for 10 Mbps Ethernet and 100 Mbps Fast Ethernet networks.
The system accepts 100‑240 VAC, 50‑60 Hz input at up to 1.6 A.
