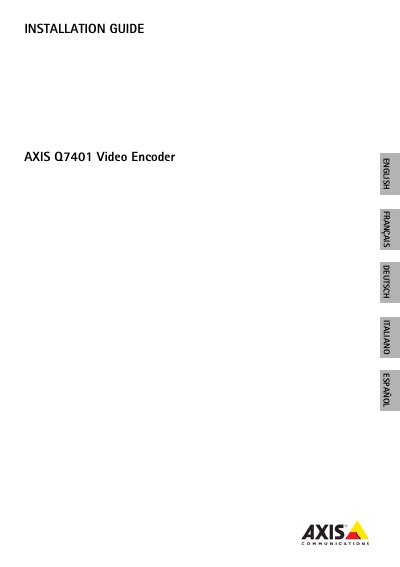

This document includes instructions for installing the AXIS Q7401 on your network.
This guide provides step‑by‑step instructions for installing the Axis Q7401 video encoder on a local network. It includes hardware mounting, cable connections, power options (PoE or supplied adapter), and initial configuration such as assigning an IP address and setting the root password.
The document also contains legal and EMC considerations, battery replacement safety, and instructions for factory reset and remote access. The encoder is intended for indoor use only and complies with regional regulatory standards.
| Dimensions (HxWxD) | 32.1 x 98.9 x 118.0 mm |
|---|---|
| Weight | 335 g (0.74 lb) |
| Battery | 3.0 V CR2032 Lithium (minimum 5 years) |
| Power options | PoE (Power over Ethernet) or indoor power adapter |
| I/O connectors | 6‑pin I/O terminal, RS‑422/RS‑485 2×2‑pin, 2‑pin power |
If a DHCP server is present the encoder receives an address automatically; otherwise it defaults to 192.168.0.90 and can be set manually with the AXIS IP Utility or Camera Management.
No, the casing is not approved for outdoor use; the device may only be installed in indoor environments.
It uses a 3.0 V CR2032 lithium battery that normally lasts at least five years; replace only when a low‑battery warning appears and follow the safety instructions.
The encoder can be powered via Power over Ethernet (PoE) class 2/3 or by connecting the supplied indoor power adapter to the 2‑pin power connector.
