This manual is intended for administrators and users of the AXIS 209MFD Network Camera, and is applicable for software release 4.45 and later. It includes instructions for using and managing the camera on your network. Previous experience of networking will be of use when using this product. Some knowledge of UNIX or Linux-based systems may also be beneficial, for developing shell scripts and applications. Later versions of this document will be posted to the Axis Website, as required. See also the product’s online help, available via the Web-based interface.

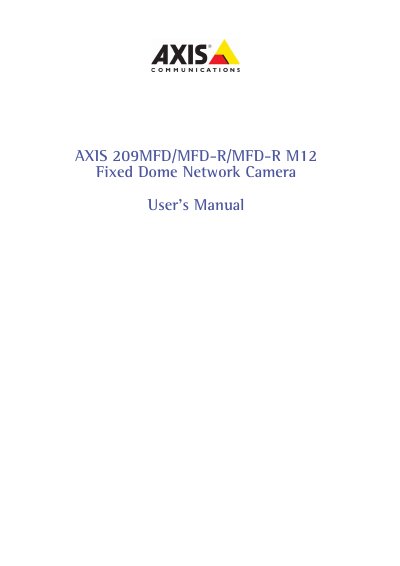

This manual guides administrators and users through installing, configuring, and operating the Axis 209MFD/MFD-R/MFD-R M12 Fixed Dome Network Camera. It covers network setup, security settings, video streaming options, and advanced features such as PTZ control and event management.
The document also includes technical specifications, troubleshooting tips, and regulatory information to help ensure reliable performance in office and business environments.
| Image sensor | 1/3" Micron Progressive Scan RG B 1.3 Megapixel CMOS |
|---|---|
| Lens | 3.6 mm, F1.8, fixed iris |
| Angle of view | 74° horizontal |
| Illumination | 3 – 10 000 lux, F1.8 |
| Video compression | Motion JPEG and MPEG‑4 Part 2 |
| Supported resolutions | 24 resolutions from 1280×1024 to 160×90 |
| Maximum frame rate | Up to 12 fps at 1280×1024 (Motion JPEG) |
| Power over Ethernet | IEEE 802.3af, Class 1 |
| Connector (M12 model) | Rugged male M12 D‑code connector |
| Processor | ARTPEC‑A |
When you first access the camera, the ‘Configure Root Password’ dialog appears; you enter and confirm a password for the permanent root user (username root).
Enter the camera’s IP address or host name in the browser’s address bar; supported browsers include Internet Explorer, Safari, and Firefox, with optional ActiveX for IE.
The camera can stream both Motion JPEG and MPEG‑4 (Part 2) video streams.
Yes, it is powered via IEEE 802.3af (Class 1) PoE.
