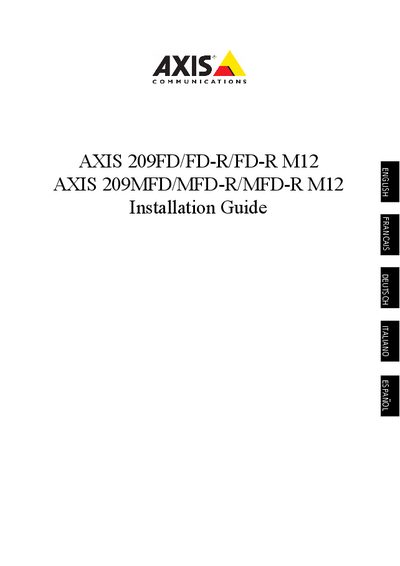

This installation guide provides instructions for installing the AXIS 209FD, AXIS 209FD-R, AXIS 209FD-R M12, AXIS 209MFD, AXIS 209MFD-R and the AXIS 209MFD-R M12 on your network
This guide provides step‑by‑step instructions for installing the AXIS 209 series network cameras, covering package verification, hardware overview, mounting, wiring and initial configuration. It also references the full User Manual for advanced features.
Key installation steps include checking package contents, mounting the camera, connecting the appropriate network cable (RJ‑45 or M12), assigning an IP address using AXIS IP Utility or Camera Management, setting a password, and adjusting the lens before completing the installation.
| Diameter 1 | 102 mm |
|---|---|
| Diameter 2 | 100 mm |
| Height | 39 mm |
| Weight | 0.18 kg |
| DC input voltage | 44‑57 V DC |
| Maximum power consumption | 3.84 W |
| Default IP address | 192.168.0.90 |
| Network connector (209FD‑R M12) | 21 mm male M12 D‑code |
It uses a 21 mm male M12 D‑code connector on a 0.5 m cable.
No, the AXIS 209FD and AXIS 209MFD are approved for indoor use only.
The cameras accept a bidirectional DC input of 44‑57 V DC, up to 3.84 W, and the power supply must be fused.
