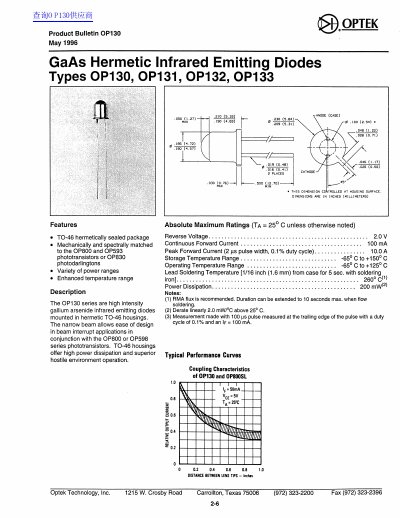

This document is a product bulletin and datasheet from May 1996 for the Optek Technology OP130 series of Gallium Arsenide (GaAs) hermetic infrared emitting diodes. The devices are available in four types: OP130, OP131, OP132, and OP133, distinguished by their radiant power output ranging from 1.0 mW to 5.0 mW.
| Package Type | TO-46 hermetically sealed package |
|---|---|
| Material | Gallium Arsenide (GaAs) |
| Reverse Voltage Max | 2.0V |
| Continuous Forward Current | 100 mA |
| Peak Forward Current | 10.0A |
| Operating Temperature Range | -65° C to +125°C |
| Power Dissipation Max | 200 mW |
| Radiant Power Output (OP130) | 1.0 mW |
| Radiant Power Output (OP131) | 3.0 mW |
| Radiant Power Output (OP132) | 4.0 mW |
| Radiant Power Output (OP133) | 5.0 mW |
| Forward Voltage Typ | 1.75 V |
| Wavelength at Peak Emission | 935 nm |
| Spectral Bandwidth | 50 nm |
| Emission Angle at Half Power Points | 18 Deg. |
The maximum continuous forward current is 100 mA.
The wavelength at peak emission is 935 nm.
