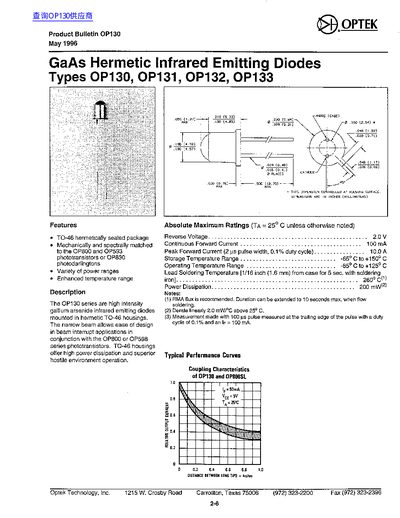

This document is a product bulletin for the Optek OP130 series, which includes types OP130, OP131, OP132, and OP133. These are high-intensity gallium arsenide infrared emitting diodes mounted in hermetic TO-46 housings. They are designed for beam interrupt applications and are mechanically and spectrally matched to specific phototransistors and photodarlingtons.
The datasheet provides absolute maximum ratings, such as a reverse voltage of 2.0V and a continuous forward current of 100 mA. It also details electrical characteristics including radiant power output ranging from 1.0 mW to 5.0 mW depending on the specific type, a peak emission wavelength of 935 nm, and an emission angle of 18 degrees at half power points.
| Package Type | TO-46 hermetically sealed |
|---|---|
| Peak Forward Current | 10.0A |
| Radiant Power Output (OP130) | 1.0 mW |
| Radiant Power Output (OP131) | 3.0 mW |
| Radiant Power Output (OP132) | 4.0 mW |
| Radiant Power Output (OP133) | 5.0 mW |
| Wavelength at Peak Emission | 935 nm |
| Emission Angle at Half Power Points | 18 Deg. |
The series includes types OP130, OP131, OP132, and OP133.
Yes, they are mechanically and spectrally matched to the OP800 and OP593 phototransistors or OP830 photodarlingtons.
The lead soldering temperature is 260°C for 1/16 inch (1.6 mm) from the case for 5 seconds.
