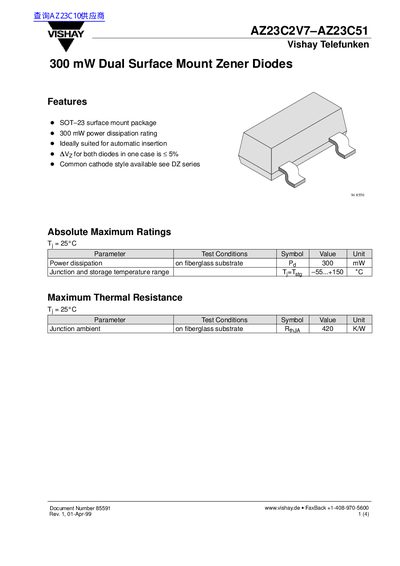

AZ23C2V7-AZ23C51 300 mW Dual Surface Mount Zener Diodes, SOT-23 surface mount package, 300 mW power dissipation rating, Ideally suited for automatic insertion, VZ for both diodes in one case is ≤ 5%, Common cathode style available see DZ series
The AZ23C2V7–AZ23C51 series are dual surface‑mount Zener diodes packaged in a SOT‑23 case with a 300 mW power‑dissipation rating. They are designed for automatic insertion and provide a common‑cathode style. Key electrical parameters include a junction temperature range of –55 °C to +150 °C, a thermal resistance of 420 K/W, and a variety of voltage‑knee values listed in the table.
The document also includes Vishay Semiconductor's ozone‑depleting substances (ODS) policy, stating that the diodes are manufactured without ODS and comply with relevant international regulations.
| Package | SOT‑23 surface mount |
|---|---|
| Power dissipation | 300 mW |
| Junction temperature range | –55 °C to +150 °C |
| Thermal resistance (RthJA) | 420 K/W |
| Weight | 0.008 g |
| Case material | Molded plastic |
The diodes are rated for 300 mW power dissipation.
The junction temperature can operate from –55 °C up to +150 °C.
They are supplied in a SOT‑23 surface‑mount package.
No, Vishay certifies that the diodes are manufactured without ozone‑depleting substances.
