STMicroelectronics 74LX1G14 CMOS Schmitt Inverter Datasheet

The 74LX1G14 is a low voltage CMOS SINGLE SCHMITT INVERTER fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for 1.65 to 5.5 VCC operations and low power and low noise applications. The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output. Power down protection is provided on input and output and 0 to 7V can be accepted on inputs with no regard to the supply voltage. It can be interfaced to 5V signal environment for inputs in mixed 3.3/5V system. Pin configuration and function are the same as those of the 74LX1G04 but the 74LX1G14 has hysteresis. This together with its schmitt trigger function allows it to be used on line receivers with slow rise/fall input signals. The input is equipped with protection circuits against static discharge, giving it ESD immunity and transient excess voltage.

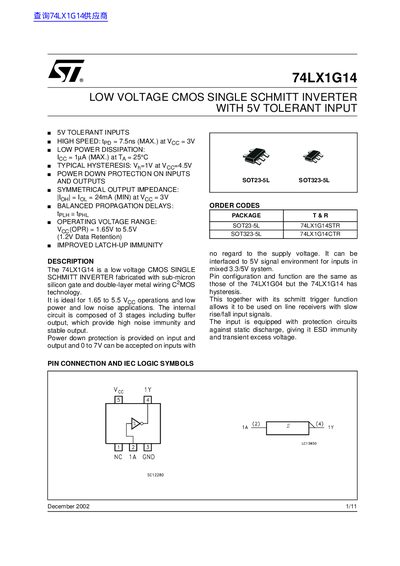

STMicroelectronics 74LX1G14 CMOS Schmitt Inverter Datasheet - cover page
Brand
STMicroelectronics
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
12
File format
PDF
File size
126 KB
Published
10 May, 2012
Updated
30 September, 2023
MD5 checksum
35B9F33DBCA1BA46C01DBB61CE9FA6EA

About this manual

The 74LX1G14 is a low‑voltage CMOS single Schmitt inverter fabricated with sub‑micron silicon gate technology. It offers 5 V tolerant inputs, low power dissipation, and built‑in ESD protection, making it suitable for 1.65 V to 5.5 V systems and mixed‑voltage environments.

Key electrical characteristics include a propagation delay of up to 7.5 ns at VCC = 3 V, typical hysteresis of 1 V at VCC = 4.5 V, symmetrical output drive of 24 mA, and an operating voltage range of 1.65 V to 5.5 V. Mechanical data for the SOT‑23‑5L and SOT‑323‑5L packages are also provided.

What's inside

  • Description
  • Pin Connection and IEC Logic Symbols
  • Absolute Maximum Ratings
  • Recommended Operating Conditions
  • DC Specifications
  • AC Electrical Characteristics
  • Capacitive Characteristics
  • Test Circuit
  • SOT23‑5L Mechanical Data
  • SOT23‑5L Mechanical Data (alternate)

Specifications

Operating voltage range1.65 V to 5.5 V
Propagation delay (tpp)7.5 ns (max) at VCC = 3 V
Input/Output voltage rating-0.5 V to +7.0 V

Frequently asked questions

What is the input voltage range for the 74LX1G14?

The device operates with input voltages from 1.65 V up to 5.5 V.

How fast is the propagation delay of the 74LX1G14?

The maximum propagation delay is 7.5 ns when VCC is 3 V.
