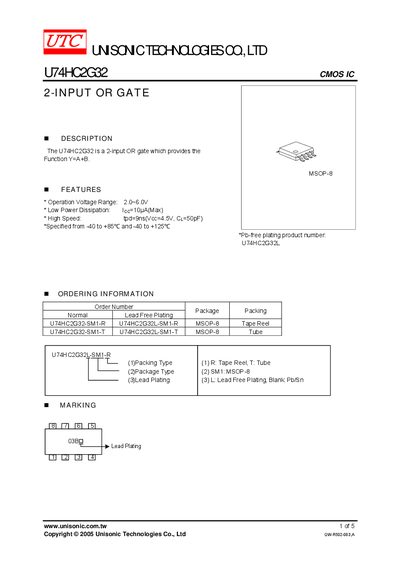

U74HC2G32 is a 2-input OR gate which provides the Function Y=A+B. Its features include operation voltage range of 2.0~6.0V, low power dissipation, high speed, etc.
The U74HC2G32 is a 2‑input OR gate (Y = A + B) offered in an MSOP‑8 package. It is supplied by Unisonic Technologies and is available in lead‑free plated versions with various tape‑reel or tube packaging options.
Key electrical characteristics include a supply voltage range of 2.0‑6.0 V, low power dissipation (≤10 µA max), propagation delay of about 9 ns at VCC=4.5 V with 50 pF load, and operation over a temperature range of –40 °C to +125 °C. Absolute maximum ratings specify input clamp currents of ±20 mA, output current of 25 mA, and power dissipation up to 300 mW.
| Operation Voltage Range | 2.0~6.0 V |
|---|---|
| Low Power Dissipation | ≤10 µA (max) |
| Propagation Delay (typ) | 9 ns (VCC=4.5 V, C_L=50 pF) |
| Operating Temperature Range | -40 °C to +125 °C |
| Input Clamp Current | ±20 mA |
| Output Current | 25 mA |
| Power Dissipation | 300 mW |
| Storage Temperature | -65 °C to +150 °C |
It is a 2‑input OR gate that provides the logical function Y = A + B.
The recommended supply voltage range is 2.0 V to 6.0 V.
The typical propagation delay is about 9 ns.
