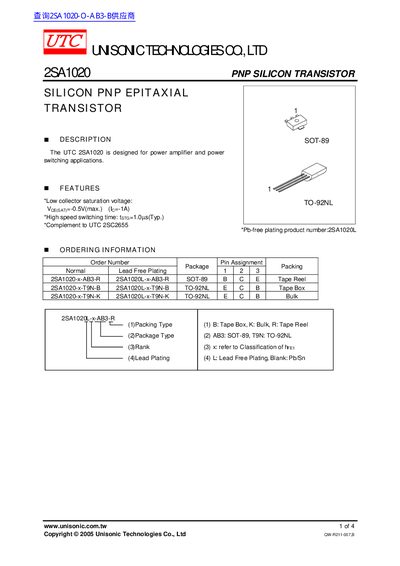

The UTC 2SA1020 is a PNP silicon transistor designed for power amplifier and power switching applications. It has a low collector saturation voltage and a high switching speed.
The 2SA1020 PNP silicon transistor is intended for power‑amplifier and power‑switching applications. It offers low collector saturation voltage and high‑speed switching, making it suitable for demanding circuits.
Key specifications include a collector‑emitter voltage of -50 V, a maximum collector current of -2 A, and power dissipation up to 500 mW in SOT‑89 packages. The device is supplied in SOT‑89 and TO‑92NL packages with lead‑free plating options.
| Collector Current (Ic) | -2 A |
|---|---|
| Power Dissipation (TO‑92NL) | 200 mW |
| Power Dissipation (SOT‑89) | 500 mW |
| Storage Temperature (Tsta) | -55 ~ +150 °C |
The device is rated for a collector current of -2 A.
The transistor is offered in SOT‑89 and TO‑92NL packages.
The SOT‑89 package can dissipate up to 500 mW.
