The UTC UR132 is a 200mA fixed output voltage low dropout linear regulator from UTC UNISONIC TECHNOLOGIES CO., LTD. It has a maximum output current of 200mA, an input voltage range of -0.3V to 12V, and an output voltage range of 0.6V to 3.3V. It can be widely used in LAN cards, CD-ROMs, and DVDs.
The UTC UR132 is a 200mA fixed output voltage low dropout linear regulator designed for applications such as LAN cards, CD-ROMs, and wireless communication systems. It offers built-in current-limiting and thermal-limiting to provide protection against fault conditions.

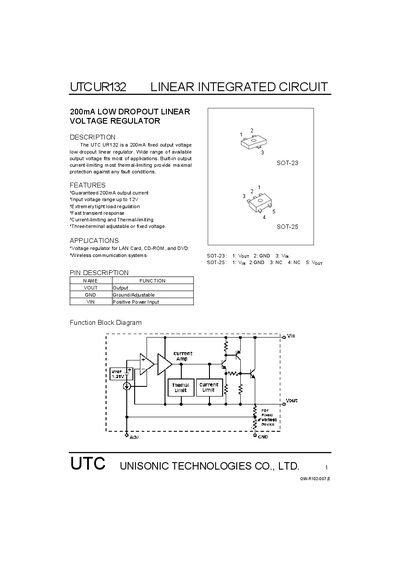

Available in SOT-23 and SOT-25 packages, the device supports a wide input voltage range up to 12V. The datasheet provides detailed electrical characteristics for both fixed and adjustable configurations, including typical application circuits and absolute maximum ratings.
| Output Current | 200mA |
|---|---|
| Input Voltage Range | up to 12V |
| Operating Junction Temperature | -40°C to +125°C |
| Power Dissipation | 0.3 W |
| Current Limit | 300 mA |
| Dropout Voltage | 1.5 V |
The device is available in SOT-23 and SOT-25 packages.
Yes, it is a three-terminal device that can be configured as either adjustable or fixed voltage.
