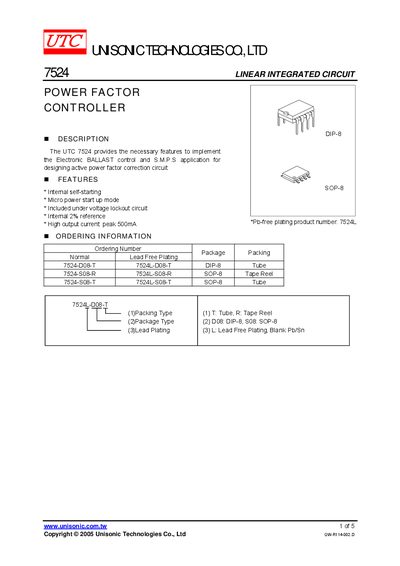

The UTC 7524 provides the necessary features to implement the Electronic BALLAST control and S.M.P.S application for designing active power factor correction circuit. It has internal self-starting, micro power start up mode, included under voltage lockout circuit, internal 2% reference, and high output current.
The Unisonic Technologies 7524 is a linear integrated circuit designed to implement Electronic Ballast control and Switched Mode Power Supply (SMPS) applications. It features an internal self-starting mechanism, micro-power start-up mode, and an included under-voltage lockout circuit.
| Supply Voltage (Vcc) | 20 V |
|---|---|
| Peak Driver Output Current | 500 mA |
| Operating Temperature Range | -20~+85 °C |
| Reference Voltage (Typical) | 2.5 V |
| Unity Gain Bandwidth | 1.0 MHz |
The device is available in DIP-8 and SOP-8 packages.
Yes, the product number for the Pb-free plating package is 7524L.
