tl082 is a high-speed j–fet input dual operational amplifier with high input impedance, high open-loop gain, low input bias current, low input offset voltage and high short-circuit current protection.

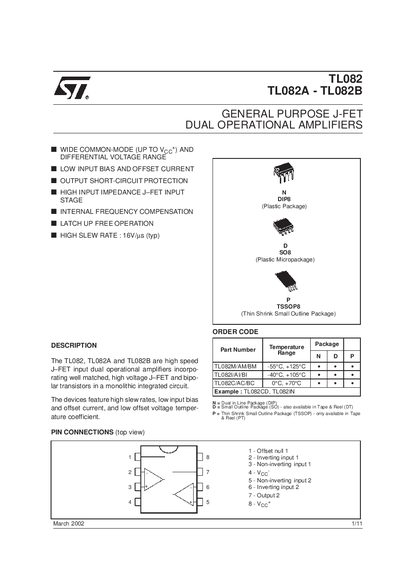

The TLO82, TLO82A and TLO82B are high‑speed J‑FET input dual operational amplifiers featuring low input bias and offset currents, high slew rate, and wide common‑mode voltage range. The document provides a full description, pin‑out, ordering information and absolute maximum ratings.
Detailed electrical characteristics are listed, including slew rate, input offset voltage, supply current and total harmonic distortion. Mechanical data for the DIP8, plastic micro‑package (SO) and TSSOP8 versions are given, along with typical application circuits such as voltage followers and gain‑of‑10 inverting amplifiers.
| Slew Rate (typ) | 16 V/µs |
|---|---|
| Supply Voltage Range | +15 V to +18 V |
| Input Voltage Range | +15 V |
| Package Type | 8‑pin plastic micro‑package (SO) |
| Package Dimension A (typ) | 1.75 mm |
The typical slew rate is 16 V/µs.
The devices are rated for a supply voltage up to +18 V.
The output short‑circuit duration is specified as infinite.
