This product is an 8 terminal flat film resistor array, with a wide range of resistance, low power consumption and high reliability.
The 8CRA06P is an 8‑terminal thick‑film resistor array with isolated resistors, offering a wide resistance range (10 Ω to 1 MΩ) and a concave terminal package for high‑density designs. It is lead‑free, RoHS‑compliant, and suitable for automatic SMD assembly and wave or reflow soldering.

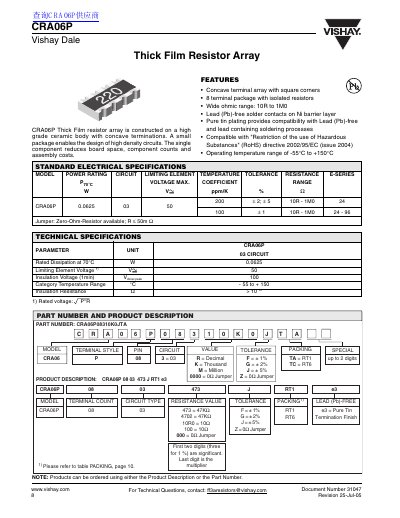

The datasheet lists the electrical ratings (0.0625 W dissipation, 50 V limiting element voltage, 100 V insulation voltage), temperature range (‑55 °C to +150 °C), mechanical dimensions, packaging options, derating curves, and test conditions such as endurance, overload, and thermal shock.
| Insulation Voltage (1 min) | 100 Vdc/ac peak |
|---|---|
| Operating Temperature Range | -55 °C to +150 °C |
| Resistance Range | 10 Ω to 1 MΩ |
It operates from –55 °C up to +150 °C.
The device has an 8‑terminal package with isolated resistors.
Yes, it is compatible with the RoHS directive 2002/95/EC.
