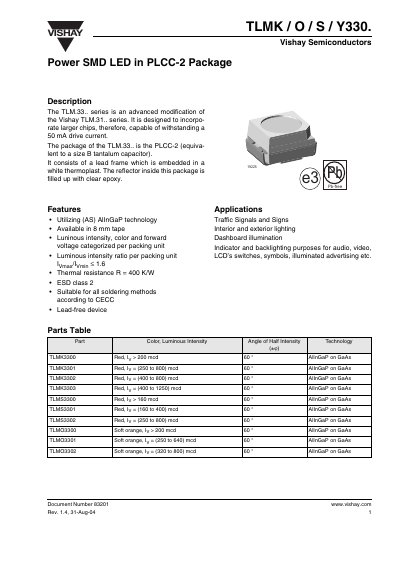

VISHAY TLMK / O / S / Y330 is a power SMD LED utilizing (AS) AlInGaP technology with a rated current of 50 mA. It is available in red, green and orange with luminous intensity of 200 - 1250 mcd per packing unit. The product is suitable for traffic signals and signs, interior and exterior lighting, dashboard illumination, indicator and backlighting purposes for audio, video, LCD switches, symbols, illuminated advertising etc.
The TLMK/O/S/Y330 series are power SMD LEDs packaged in a PLCC‑2 lead‑frame. They use AlInGaP technology and are available in red, soft orange, and yellow colors for a variety of lighting applications.\n\nThe document lists absolute maximum ratings, optical and electrical characteristics, package dimensions, and typical performance curves. It also includes application guidance for traffic signals, dashboard illumination, and other indicator and backlighting uses.
| Package type | PLCC‑2 (equivalent to size B tantalum capacitor) |
|---|---|
| Thermal resistance (RthJA) | 400 K/W |
| Forward voltage (typical) | 1.85 – 2.55 V |
| Reverse voltage | 5 V |
| Operating temperature range | -40 °C to +100 °C |
| Luminous intensity (TLMK3300) | 200 – 500 mcd |
| Dominant wavelength (typical) | 611 – 617 nm |
The typical forward voltage is between 1.85 V and 2.55 V at a forward current of 50 mA.
The thermal resistance from junction to ambient is 400 K/W.
They are suitable for traffic signals, interior and exterior lighting, dashboard illumination, and indicator/backlighting for audio, video, LCD switches, and illuminated advertising.
Soldering temperature should not exceed 260 °C and the time should be 5 seconds or less.
