TLWW8900 is a LED product produced by Vishay Semiconductors. This product has the characteristics of high luminous flux, high heat dissipation, and high operating temperature. It is suitable for external lighting, dashboard lighting, automobile taillights, turn signals and other scenes.

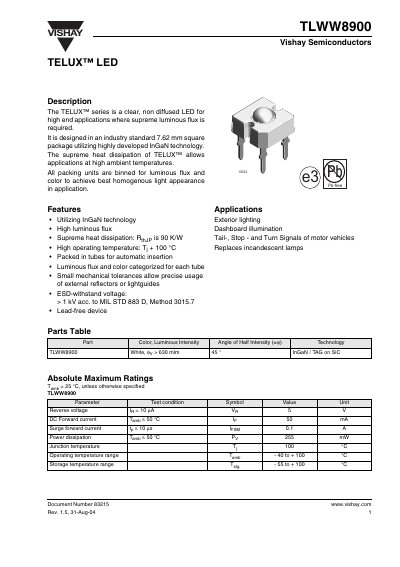

The TLWW8900 TELUX LED is a clear, non‑diffused device in a 7.62 mm square package that uses InGaN technology for high luminous flux and excellent heat dissipation. It is rated for high ambient temperatures and is supplied in tubes that are binned by luminous flux and color.
Key specifications include a thermal resistance junction‑to‑pin of 90 K/W, a maximum forward voltage of 5.2 V at 50 mA, and an operating temperature range from –40 °C to +100 °C. The datasheet also provides absolute maximum ratings, optical characteristics, and typical performance curves.
| Thermal resistance junction‑to‑pin (RthJP) | 90 K/W |
|---|---|
| Maximum reverse voltage (IR) | 10 µA |
| Forward voltage (VF) | 4.3 V – 5.2 V |
| Junction temperature (Tj) limit | 100 °C |
| Operating temperature range (Tamb) | -40 °C to +100 °C |
| Package dimensions | 15 mm × 9 mm × 8 mm |
The maximum reverse voltage is 10 µA.
The thermal resistance junction‑to‑pin is 90 K/W.
The forward voltage ranges from 4.3 V to 5.2 V.
It can operate from –40 °C up to +100 °C ambient temperature.
