This document is a product catalog that contains specifications and model information for various wires and sockets. The products mentioned include 12-socket wires, 9-socket wires, 6-socket wires, etc., each with different features and functions.

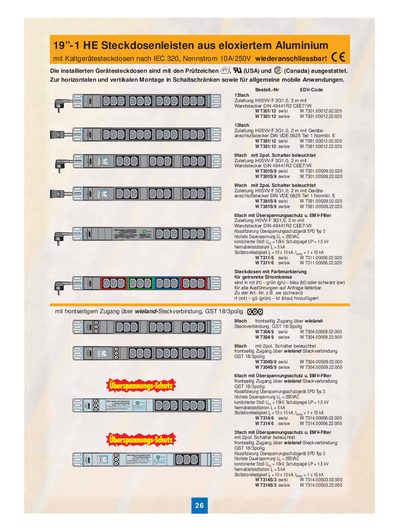

The APSA 19‑1 HE power strip is made of anodised aluminium and features cold‑device sockets compliant with IEC 320. It is designed for horizontal and vertical mounting in switch cabinets as well as mobile applications.
Variants are offered with 12, 9 or 6 outlets, optional illuminated switches, surge‑protection (SPD Type 3) and EMV‑filtering. Cables are supplied as 2 m H05VVF 3G1.0 leads with DIN wall plugs, and sockets can be colour‑coded for separate circuits. This manual is written in German.
| Nominal current | 10 A / 250 V |
|---|---|
| Surge protection class | SPD Type 3 |
| Number of outlets (12‑fach version) | 12 |
| Cable type | H05VVF 3G1.0, 2 m |
| Mounting | Horizontal and vertical in switch cabinets |
It is rated for 10 A at 250 V.
The 12‑fach version provides twelve outlets.
Yes, it includes surge protection classified as SPD Type 3.
A 2 m H05VVF 3G1.0 cable with a DIN wall plug is supplied.
