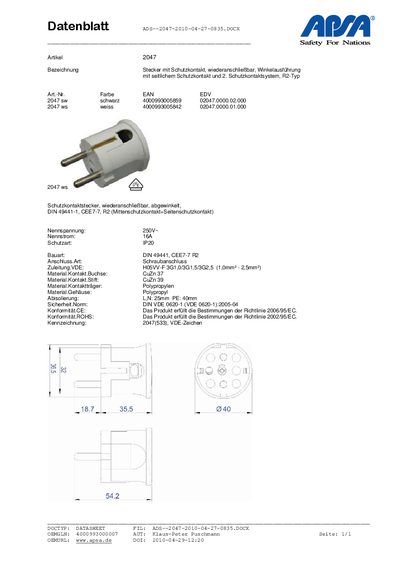

2047 is a re-connectable angle plug with earthing contact and 2nd earthing system, R2 type, produced by apsa
The APSA 2047 is a re‑connectable, angled protective‑contact plug (R2 type) conforming to DIN 49441‑1 and CEE7‑7 standards. It features a side‑contact and a second protective‑contact system, suitable for 250 V~ and 16 A applications.
The product complies with EU directives (CE, RoHS) and German safety norm DIN VDE 0620‑1 (2005‑04). Materials include CuZn contacts, a polypropylene carrier, and a polypropylen housing, with IP20 protection class. This manual is written in German.
| Nominal voltage | 250 V~ |
|---|---|
| Nominal current | 16 A |
| Protection class | IP20 |
| Plug type | DIN 49441, CEE7‑7, R2 |
| Contact socket material | CuZn 37 |
| Contact pin material | CuZn 39 |
| Housing material | Polypropylene |
| Safety standard | DIN VDE 0620‑1 (2005‑04) |
The nominal voltage is 250 V~.
The plug is rated for 16 A.
It complies with DIN VDE 0620‑1 (2005‑04).
Yes, it meets the requirements of both the CE and RoHS directives.
