This document is a detailed description of the KRANIA 38.0 protection contact plug, including type, end termination, rated voltage/current, outer dimensions, wiring, lead length, plug, approval marks and short description.

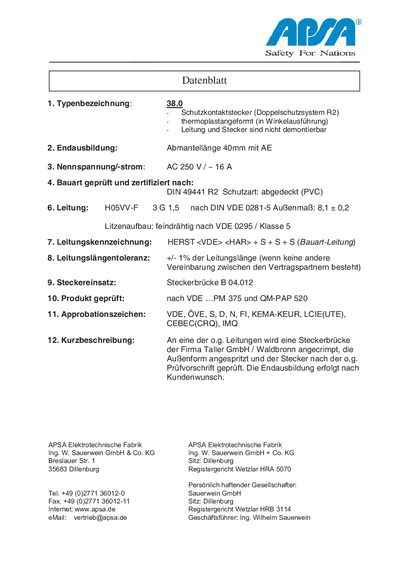

This datasheet provides the technical data for APSA's safety contact plug (Doppelschutzsystem R2). It includes the rated voltage and current, cable specifications, and the applicable standards and certifications.
The document lists the approved cable type (HO5VV-F 3G1,5), the construction details (fine‑strand according to VDE 0295, class 5), tolerance of cable length (+/- 1%), and the various certifications (VDE, OVE, KEMA‑KEUR, etc.). This manual is written in German.
| Rated voltage / current | AC 250 V / ~16 A |
|---|---|
| Cable type | HO5VV-F 3G1,5 |
| Protection class | IP‑rated, covered (PVC) |
| Cable construction | Fine‑strand, VDE 0295, class 5 |
| Cable length tolerance | ± 1 % of cable length |
| Plug type | Safety contact plug (double protection system R2) |
| Certifications | VDE, OVE, S, D, N, Fl, KEMA‑KEUR, LCIE(UTE), CEBEC(CRQ), IMQ |
The plug is rated for AC 250 V and approximately 16 A.
It uses HO5VV-F cable, size 3G1,5.
It is certified according to VDE, OVE, S, D, N, Fl, KEMA‑KEUR, LCIE(UTE), CEBEC(CRQ) and IMQ.
The cable length tolerance is ± 1 % of the specified length.
